Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LS03-1R5J-RC1.5uH +/-5% Ferrite Core Chip |
1,046 |
|
Datasheet |
LS03 | 0603 (1608 Metric) | Tray | Active | Wirewound | Ferrite | 1.5 µH | ±5% | - | 540mA | Unshielded | 1.06Ohm Max | 17 @ 7.9MHz | 270MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.040" (1.02mm) |
|

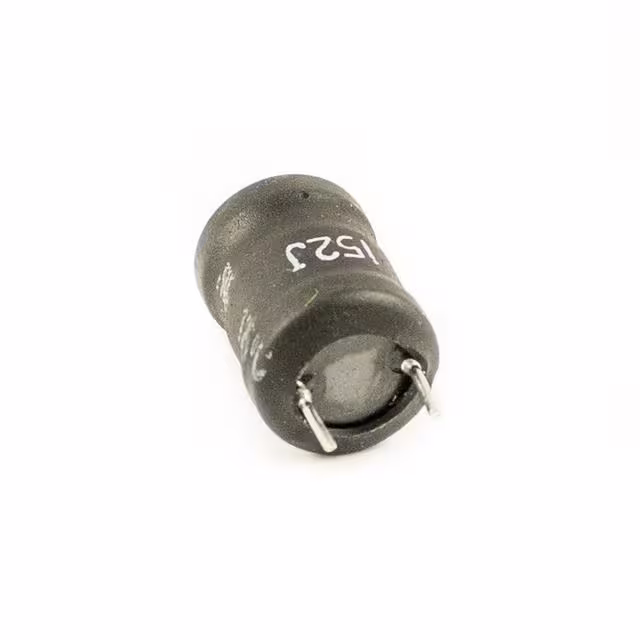

RB1315-152J-RC1500uH +/-5% Radial Inductor |
4,737 |
|
Datasheet |
RB1315 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 1.5 mH | ±5% | 680 mA | 1A | Unshielded | 1.3Ohm Max | 40 @ 252kHz | 830kHz | - | -25°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.551" Dia (14.00mm) | 0.669" (17.00mm) |
|

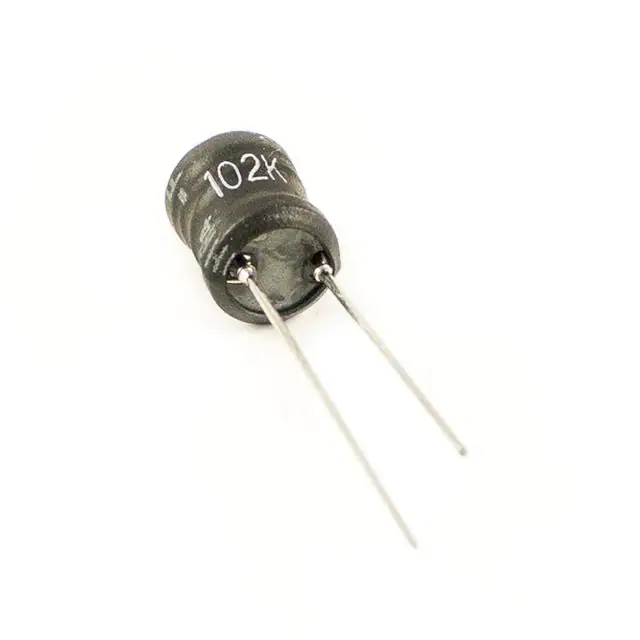

RB0814-102K-RC1000uH +/-10% Radial Inductor |
3,545 |
|
Datasheet |
RB0814 | Radial, Vertical Cylinder | Tray | Active | - | - | 1 mH | ±10% | - | 300mA | Unshielded | 2.1Ohm Max | 40 @ 252kHz | 1.3MHz | - | -40°C ~ 105°C | 252 kHz | - | Through Hole | Radial | 0.343" Dia (8.70mm) | 0.512" (13.00mm) |
|

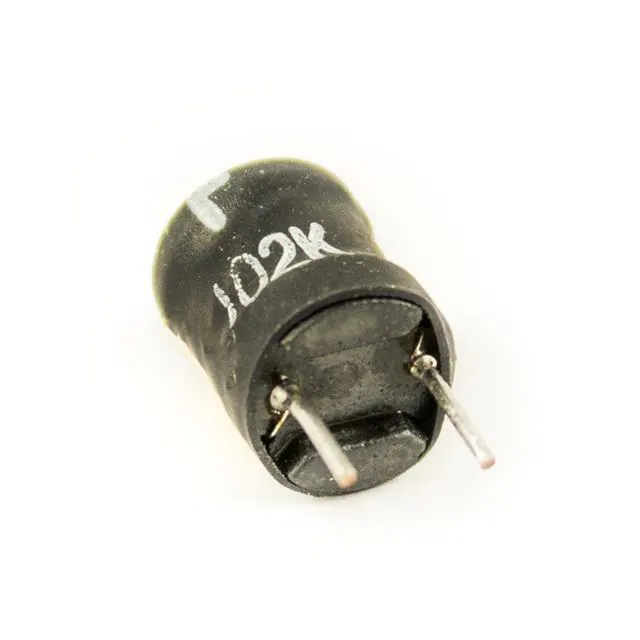

RB40-102K-RC1000uH +/-10% Radial Inductor |
2,514 |
|
Datasheet |
RB40 | Radial, Vertical Cylinder | Bag | Active | Wirewound | - | 1 mH | ±10% | 150 mA | - | Unshielded | 6Ohm Max | 90 @ 252kHz | 1.3MHz | - | -55°C ~ 125°C | 252 kHz | - | Through Hole | Radial | 0.315" Dia (8.00mm) | 0.441" (11.20mm) |
|
|
RB40-103K-RC10mH +/-10% Radial Inductor |
4,934 |
|
Datasheet |
RB40 | Radial, Vertical Cylinder | Bag | Active | Wirewound | - | 10 mH | ±10% | 40 mA | - | Unshielded | 40Ohm Max | 100 @ 79.6kHz | 400kHz | - | -55°C ~ 125°C | 79.6 kHz | - | Through Hole | Radial | 0.315" Dia (8.00mm) | 0.441" (11.20mm) |
|

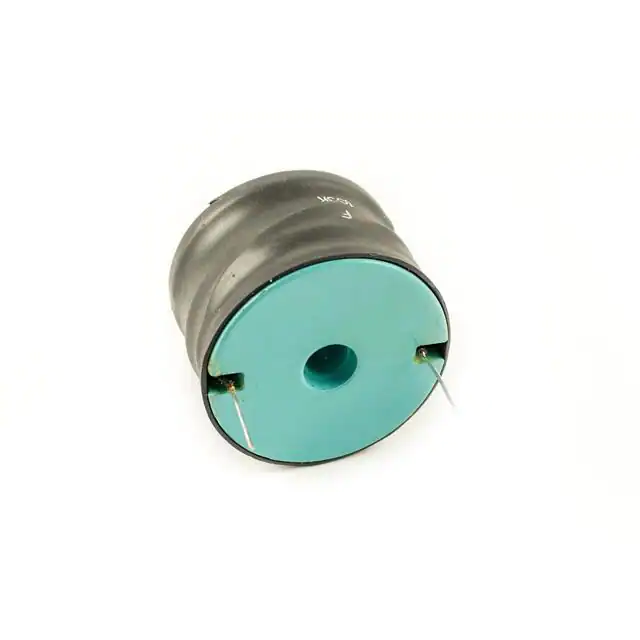

RDC40-153K-RC15uH +/-10% Radial Drum Core |
4,132 |
|
Datasheet |
RDC40 | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core | - | 15 mH | ±10% | 1.3 A | 1.5A | Unshielded | 3.39Ohm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
|
RDC40-101K-RC100uH +/-10% Radial Drum Core |
4,857 |
|
Datasheet |
RDC40 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 100 µH | ±10% | 14.4 A | 20A | Unshielded | 25mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
|
RDC40-821K-RC820uH +/-10% Radial Drum Core |
2,891 |
|
Datasheet |
RDC40 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 820 µH | ±10% | 2.7 A | 6.8A | Unshielded | 154mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
|
RDC40-270K-RC27uH +/-10% Radial Drum Core |
2,883 |
|
Datasheet |
RDC40 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 27 µH | ±10% | 21 A | 36A | Unshielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
RDC50-100K-RC10uH +/-10% Radial Drum Core |
4,741 |
|
Datasheet |
RDC50 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 10 µH | ±10% | 35 A | 67A | Unshielded | 4mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.450" (36.83mm) |
|
|
RDC50-181K-RC180uH +/-10% Radial Drum Core |
2,057 |
|
Datasheet |
RDC50 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 180 µH | ±10% | 13.5 A | 14A | Unshielded | 35mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.450" (36.83mm) |
|
|
RDC50-150K-RC15uH +/-10% Radial Drum Core |
3,065 |
|
Datasheet |
RDC50 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 15 µH | ±10% | 35 A | 49A | Unshielded | 5mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.450" (36.83mm) |
|
|
RDC50-221K-RC220uH +/-10% Radial Drum Core |
4,152 |
|
Datasheet |
RDC50 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 220 µH | ±10% | 13.5 A | 13A | Unshielded | 40mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.450" (36.83mm) |
|
|
RDC50-471K-RC470uH +/-10% Radial Drum Core |
2,565 |
|
Datasheet |
RDC50 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 470 µH | ±10% | 11.4 A | 8.8A | Unshielded | 78mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.450" (36.83mm) |
|
|
RDC50-680K-RC68uH +/-10% Radial Drum Core |
3,372 |
|
Datasheet |
RDC50 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 68 µH | ±10% | 21 A | 23A | Unshielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.450" (36.83mm) |
|
RDC60-333K-RC33000uH +/-10% Radial Drum Core |
4,164 |
|
Datasheet |
RDC60 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 33 mH | ±10% | 1.7 A | 1.5A | Unshielded | 4.16Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 2.000" Dia (50.80mm) | 1.500" (38.10mm) |
|
|
RDC60-392K-RC3900uH +/-10% Radial Drum Core |
1,706 |
|
Datasheet |
RDC60 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 3.9 mH | ±10% | 4.5 A | 4.2A | Unshielded | 548mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 2.000" Dia (50.80mm) | 1.500" (38.10mm) |
|
|
RDC60-271K-RC270uH +/-10% Radial Drum Core |
3,038 |
|
Datasheet |
RDC60 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 270 µH | ±10% | 21 A | 16.2A | Unshielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 2.000" Dia (50.80mm) | 1.500" (38.10mm) |
|
|
RDC60-123K-RC12000uH +/-10% Radial Drum Core |
1,074 |
|
Datasheet |
RDC60 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 12 mH | ±10% | 2.8 A | 2.4A | Unshielded | 1.54Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 2.000" Dia (50.80mm) | 1.500" (38.10mm) |
|
|
RDC60-181K-RC180uH +/-10% Radial Drum Core |
3,254 |
|
Datasheet |
RDC60 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 180 µH | ±10% | 21 A | 19.5A | Unshielded | 25mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 2.000" Dia (50.80mm) | 1.500" (38.10mm) |
