Nichicon UKL1H100KDD
- Part No.:
- UKL1H100KDD
- Manufacturer:
- Nichicon
- Category:
- Aluminum Electrolytic Capacitors
- Package:
- Datasheet:
-
UKL1H100KDD.pdf
- Description:
- CAP ALUM 10UF 10% 50V RADIAL TH
- Quantity:
- Payment:

- Shipping:

UKL1H100KDD Specifications
- Attributes
- Property Value
- Manufacturer:
- Nichicon
- Package/Case:
- Series:
- UKL
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Capacitance:
- 10 µF
- Tolerance:
- ±10%
- Voltage - Rated:
- 50 V
- ESR (Equivalent Series Resistance):
- -
- Lifetime @ Temp.:
- 2000 Hrs @ 85°C
- Operating Temperature:
- -40°C ~ 85°C
- Polarization:
- Polar
- Ratings:
- -
- Applications:
- General Purpose
- Ripple Current @ Low Frequency:
- 70 mA @ 120 Hz
- Ripple Current @ High Frequency:
- 140 mA @ 10 kHz
- Impedance:
- -
- Lead Spacing:
- 0.079" (2.00mm)
- Size / Dimension:
- 0.197" Dia (5.00mm)
- Height - Seated (Max):
- 0.472" (12.00mm)
- Surface Mount Land Size:
- -
- Mounting Type:
- Through Hole
UKL1H100KDD FAQ
1. How to order UKL1H100KDD on CEX ELECTRONICS LIMITED?
Currently, CEX ELECTRONICS LIMITED only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.
2. How does CEX ELECTRONICS LIMITED guarantee that UKL1H100KDD is from the original manufacturer or authorized agents?
We have a professional and experienced quality control team to strictly verify and test the UKL1H100KDD. All suppliers must pass our qualification reviews before they can publish their products including UKL1H100KDD on CEX ELECTRONICS LIMITED; we pay more attention to the channels and quality of UKL1H100KDD products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.
3. Are the UKL1H100KDD price and inventory displayed accurate?
The price and inventory of UKL1H100KDD fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.
4. What forms of payment are accepted?
Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.
Warm Tips: Some orders in certain payment forms may require handling fee.
5. How is the shipping arranged?
Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.
Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.
Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.
6. What is the process for return or replacement of UKL1H100KDD?
All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the UKL1H100KDD we delivered, we will accept the replacement or return of the UKL1H100KDD only when all of the below conditions are fulfilled:
(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.
(2)We are informed of the defect described above within 90 days after the delivery of UKL1H100KDD.
(3)The PartNo is unused and only in the original unpacked packaging.
Two processes to return the products:
(1)Inform us within 90 days
(2)Obtain Requesting Return Authorizations
7.How to contact us to get technical supports, such as UKL1H100KDD pin diagram, UKL1H100KDD datasheet?
If you need any after-sales service, please do not hesitate to contact us.
UKL1H100KDD Product Comparison
| Image | ![]() |
||||

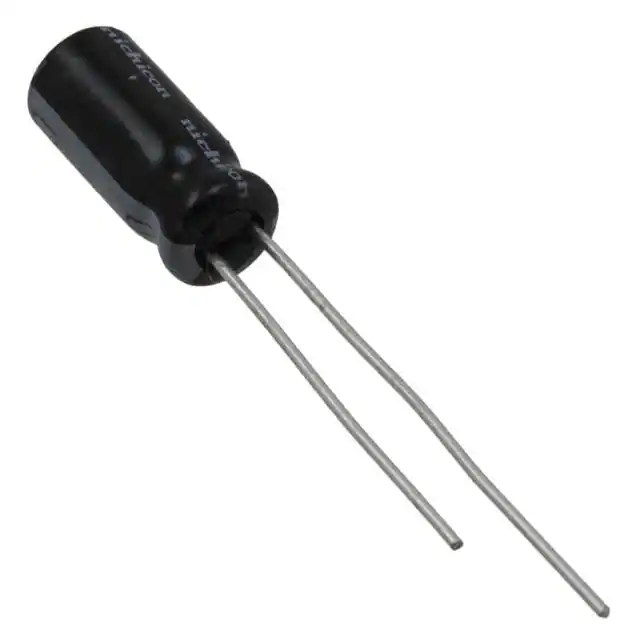

| Part Number | UKL1H100KDD1TD | UKL1H100KDDANATA | UKL1H100KDDANA | UKL1H100KDDANATD | UKL1H100KDD |
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Package/Case | |||||
| Series | UKL | UKL | UKL | UKL | UKL |
| Packaging | Cut Tape (CT) | Tape & Box (TB) | Bulk | Cut Tape (CT) | Bulk |
| Product Status | Obsolete | Not For New Designs | Obsolete | Obsolete | Obsolete |
| Capacitance | 10 µF | 10 µF | 10 µF | 10 µF | 10 µF |
| Tolerance | ±20% | ±20% | ±10% | ±10% | ±10% |
| Voltage - Rated | 50 V | 50 V | 50 V | 50 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 70 mA @ 120 Hz | 70 mA @ 120 Hz | 70 mA @ 120 Hz | 70 mA @ 120 Hz | 70 mA @ 120 Hz |
| Ripple Current @ High Frequency | 140 mA @ 10 kHz | 140 mA @ 10 kHz | 140 mA @ 10 kHz | 140 mA @ 10 kHz | 140 mA @ 10 kHz |
| Impedance | - | - | - | - | - |
| Lead Spacing | 0.098" (2.50mm) | 0.197" (5.00mm) | 0.079" (2.00mm) | 0.098" (2.50mm) | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) | 0.472" (12.00mm) | 0.433" (11.00mm) | 0.472" (12.00mm) | 0.472" (12.00mm) |
| Surface Mount Land Size | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |

-
