Rohm Semiconductor RPM-075PTT86
- Part No.:
- RPM-075PTT86
- Manufacturer:
- Rohm Semiconductor
- Category:
- Phototransistors
- Package:
- Nonstandard SMD
- Datasheet:
-
RPM-075PTT86.pdf
- Description:
- SENSOR PHOTO 600NM TOP VIEW SMD
- Quantity:
- Payment:

- Shipping:

RPM-075PTT86 Specifications
- Attributes
- Property Value
- Manufacturer:
- Rohm Semiconductor
- Series:
- -
- Package/Case:
- Nonstandard SMD
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Voltage - Collector Emitter Breakdown (Max):
- 20 V
- Current - Collector (Ic) (Max):
- 10 mA
- Current - Dark (Id) (Max):
- 500 nA
- Wavelength:
- 600nm
- Viewing Angle:
- 120°
- Power - Max:
- 50 mW
- Mounting Type:
- Surface Mount
- Orientation:
- Top View
- Operating Temperature:
- -30°C ~ 85°C
- Grade:
- -
- Qualification:
- -
RPM-075PTT86 FAQ
1. How to order RPM-075PTT86 on CEX ELECTRONICS LIMITED?
Currently, CEX ELECTRONICS LIMITED only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.
2. How does CEX ELECTRONICS LIMITED guarantee that RPM-075PTT86 is from the original manufacturer or authorized agents?
We have a professional and experienced quality control team to strictly verify and test the RPM-075PTT86. All suppliers must pass our qualification reviews before they can publish their products including RPM-075PTT86 on CEX ELECTRONICS LIMITED; we pay more attention to the channels and quality of RPM-075PTT86 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.
3. Are the RPM-075PTT86 price and inventory displayed accurate?
The price and inventory of RPM-075PTT86 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.
4. What forms of payment are accepted?
Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.
Warm Tips: Some orders in certain payment forms may require handling fee.
5. How is the shipping arranged?
Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.
Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.
Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.
6. What is the process for return or replacement of RPM-075PTT86?
All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the RPM-075PTT86 we delivered, we will accept the replacement or return of the RPM-075PTT86 only when all of the below conditions are fulfilled:
(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.
(2)We are informed of the defect described above within 90 days after the delivery of RPM-075PTT86.
(3)The PartNo is unused and only in the original unpacked packaging.
Two processes to return the products:
(1)Inform us within 90 days
(2)Obtain Requesting Return Authorizations
7.How to contact us to get technical supports, such as RPM-075PTT86 pin diagram, RPM-075PTT86 datasheet?
If you need any after-sales service, please do not hesitate to contact us.
RPM-075PTT86 Product Comparison
| Image | ![]() |
![]() |
![]() |
||

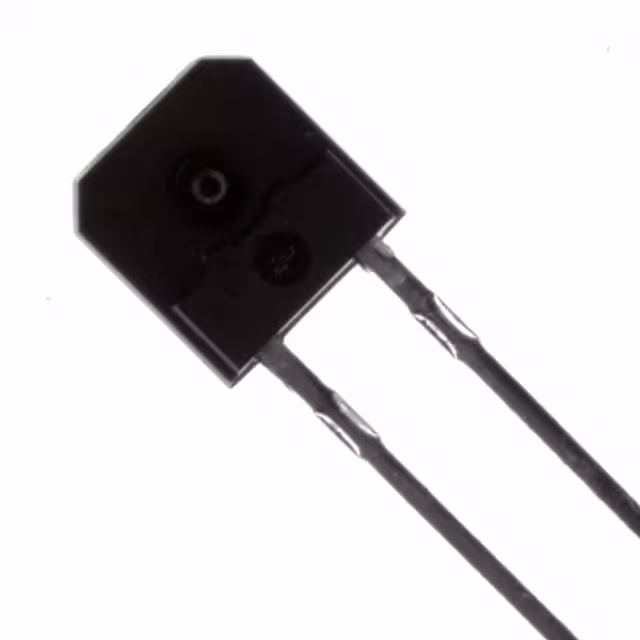

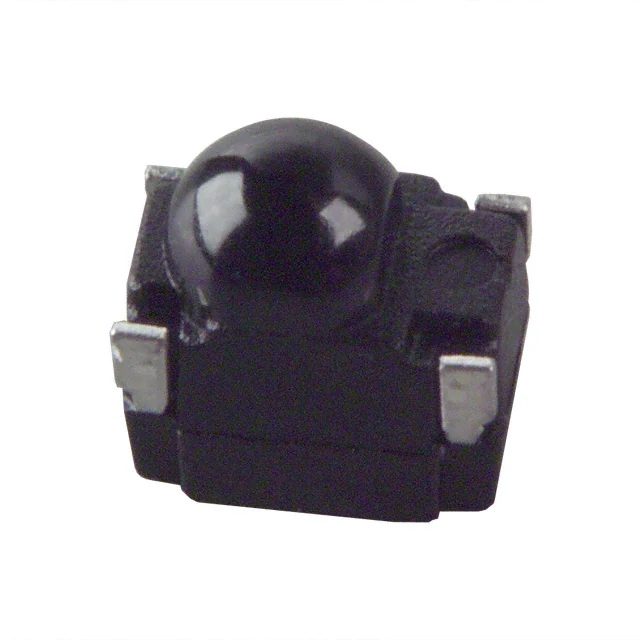

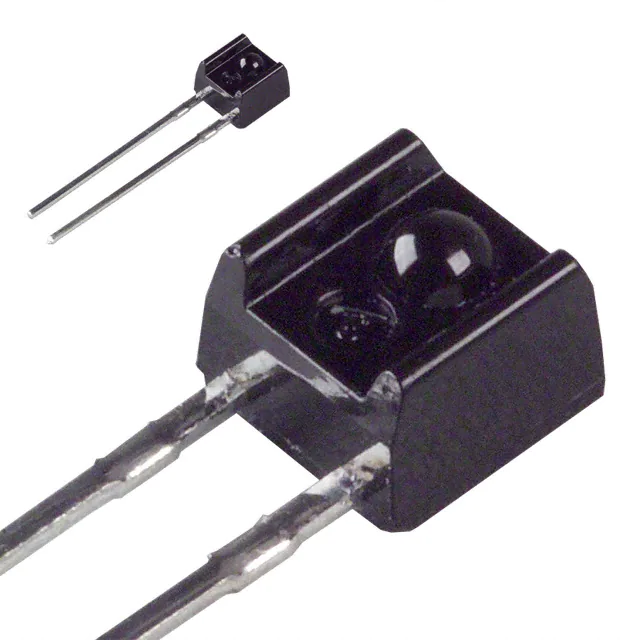

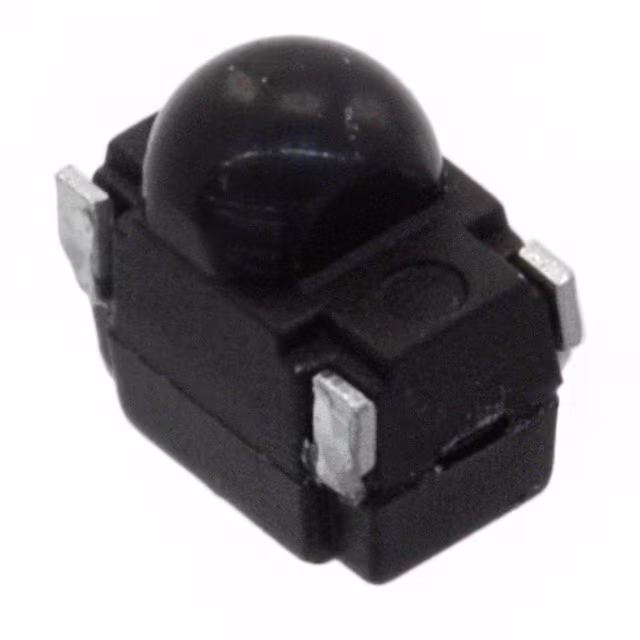

| Part Number | RPM-075PTT86 | RPM-012PBT87 | RPM-20PBM | RPM-22PB | RPM-012PBT97 |
| Manufacturer | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor |
| Series | - | - | - | - | - |
| Package/Case | Nonstandard SMD | 4-SMD, No Lead | Radial | Radial | 4-SMD, No Lead |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Bulk | Bulk | Tape & Reel (TR) |
| Product Status | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| Voltage - Collector Emitter Breakdown (Max) | 20 V | 32 V | 32 V | 32 V | 32 V |
| Current - Collector (Ic) (Max) | 10 mA | 20 mA | 30 mA | 30 mA | 20 mA |
| Current - Dark (Id) (Max) | 500 nA | 500 nA | 500 nA | 500 nA | 500 nA |
| Wavelength | 600nm | 800nm | 800nm | 800nm | 800nm |
| Viewing Angle | 120° | 24° | 28° | 64° | 24° |
| Power - Max | 50 mW | 75 mW | 100 mW | 150 mW | 75 mW |
| Mounting Type | Surface Mount | Surface Mount | Through Hole | Through Hole | Surface Mount |
| Orientation | Top View | Side View | Side View | Side View | Side View |
| Operating Temperature | -30°C ~ 85°C | -30°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -30°C ~ 85°C |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |

-
