Astrodyne TDI PWC-12E

Part No.:
PWC-12E
Manufacturer:
Astrodyne TDI
Category:
AC DC Converters
Package:
4-DIP Module
Datasheet:
PWC-12E.pdf
Description:
AC/DC CONVERTER 12V 5W
Quantity:
Payment:
Payment
Shipping:
Shipping

Inventory:4,397

Qty. Unit Price Ext. Price
RFQ Add to RFQ

PWC-12E Specifications

Attributes
Property Value
Manufacturer:
Astrodyne TDI
Series:
PWC (5W)
Package/Case:
4-DIP Module
Packaging:
Box
Product Status:
Active
Type:
Enclosed
Number of Outputs:
1
Voltage - Input:
90 ~ 264 VAC
Voltage - Output 1:
12V
Voltage - Output 2:
-
Voltage - Output 3:
-
Voltage - Output 4:
-
Current - Output (Max):
420mA
Power (Watts):
5 W
Applications:
ITE (Commercial)
Features:
Universal Input
Operating Temperature:
-25°C ~ 65°C (With Derating)
Efficiency:
73%
Mounting Type:
Through Hole
Size / Dimension:
2.00" L x 1.00" W x 0.60" H (50.8mm x 25.4mm x 15.2mm)
Approval Agency:
cURus, UL
Standard Number:
-
Reset All
Search Similar
Result:

PWC-12E FAQ

1. How to order PWC-12E on CEX ELECTRONICS LIMITED?

Currently, CEX ELECTRONICS LIMITED only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does CEX ELECTRONICS LIMITED guarantee that PWC-12E is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the PWC-12E. All suppliers must pass our qualification reviews before they can publish their products including PWC-12E on CEX ELECTRONICS LIMITED; we pay more attention to the channels and quality of PWC-12E products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the PWC-12E price and inventory displayed accurate?

The price and inventory of PWC-12E fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of PWC-12E?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the PWC-12E we delivered, we will accept the replacement or return of the PWC-12E only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of PWC-12E.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations

7.How to contact us to get technical supports, such as PWC-12E pin diagram, PWC-12E datasheet?

If you need any after-sales service, please do not hesitate to contact us.

PWC-12E Product Comparison

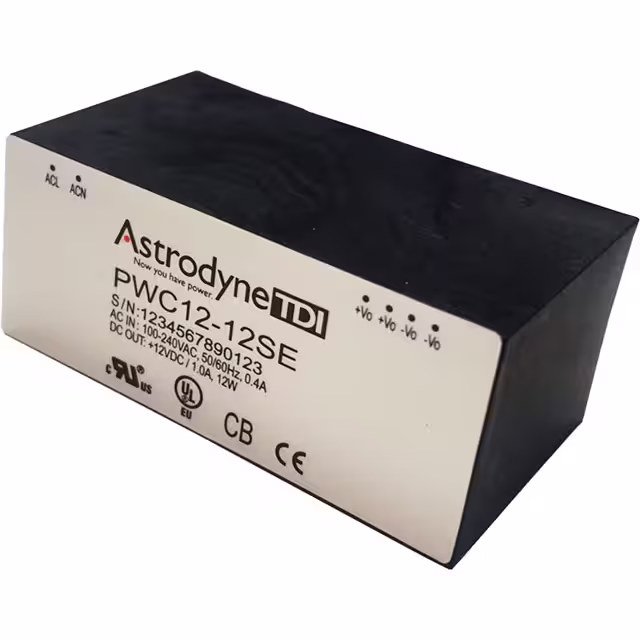

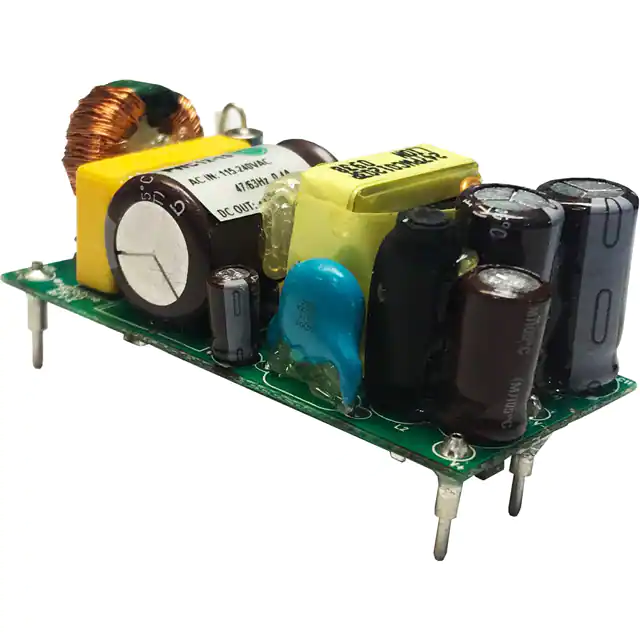

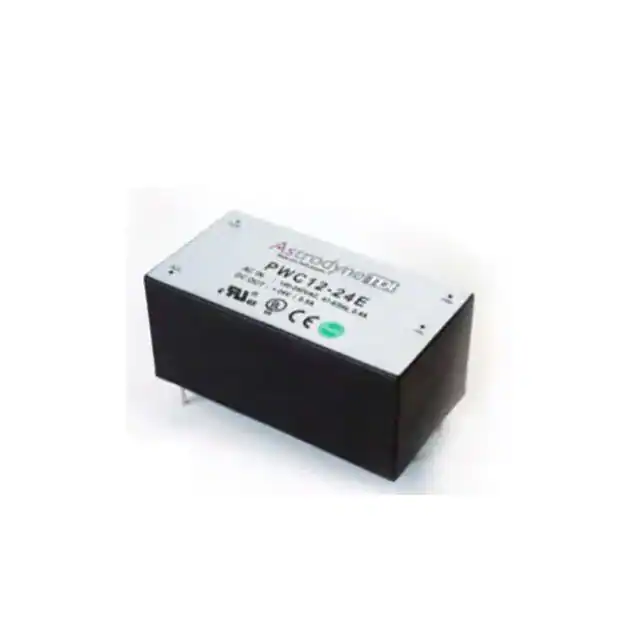

Image PWC-24E PWC12-5SE PWC12-3.3 PWC12-24E PWC12-5E
Part Number PWC-24E PWC12-5SE PWC12-3.3 PWC12-24E PWC12-5E
Manufacturer Astrodyne TDI Astrodyne TDI Astrodyne TDI Astrodyne TDI Astrodyne TDI
Series PWC (5W) PWC12 (12W) PWC12 (12W) PWC12 (12W) PWC12 (12W)
Package/Case 4-DIP Module 6-SIP Module 4-DIP Module 4-DIP Module 4-DIP Module
Packaging Box Box Box Box Box
Product Status Active Active Active Active Active
Type Enclosed Enclosed Open Frame Enclosed Enclosed
Number of Outputs 1 1 1 1 1
Voltage - Input 90 ~ 264 VAC 90 ~ 264 VAC 90 ~ 264 VAC 90 ~ 264 VAC 90 ~ 264 VAC
Voltage - Output 1 24V 5V 3.3V 24V 5V
Voltage - Output 2 - - - - -
Voltage - Output 3 - - - - -
Voltage - Output 4 - - - - -
Current - Output (Max) 230mA 2.4A 3.01A 500mA 2.4A
Power (Watts) 5.5 W 12 W 12 W 12 W 12 W
Applications ITE (Commercial) ITE (Commercial), Medical ITE (Commercial), Medical ITE (Commercial) ITE (Commercial)
Features Universal Input Universal Input Universal Input Universal Input Universal Input
Operating Temperature -25°C ~ 65°C (With Derating) -20°C ~ 70°C (With Derating) -20°C ~ 70°C (With Derating) -20°C ~ 70°C (With Derating) -20°C ~ 70°C (With Derating)
Efficiency 76% 72% 77% 82% 75%
Mounting Type Through Hole Through Hole Through Hole Through Hole Through Hole
Size / Dimension 2.00" L x 1.00" W x 0.60" H (50.8mm x 25.4mm x 15.2mm) 2.11" L x 0.92" W x 1.24" H (53.6mm x 23.3mm x 31.5mm) 2.06" L x 1.07" W x 0.91" H (52.3mm x 27.2mm x 23.0mm) 2.06" L x 1.07" W x 0.91" H (52.4mm x 27.2mm x 23.0mm) 2.06" L x 1.07" W x 0.91" H (52.4mm x 27.2mm x 23.0mm)
Approval Agency cURus, UL cURus, UL cURus, UL CB, cURus, UL CB, cURus, UL
Standard Number - 60601-1; 60950-1 60601-1; 60950-1 - -
