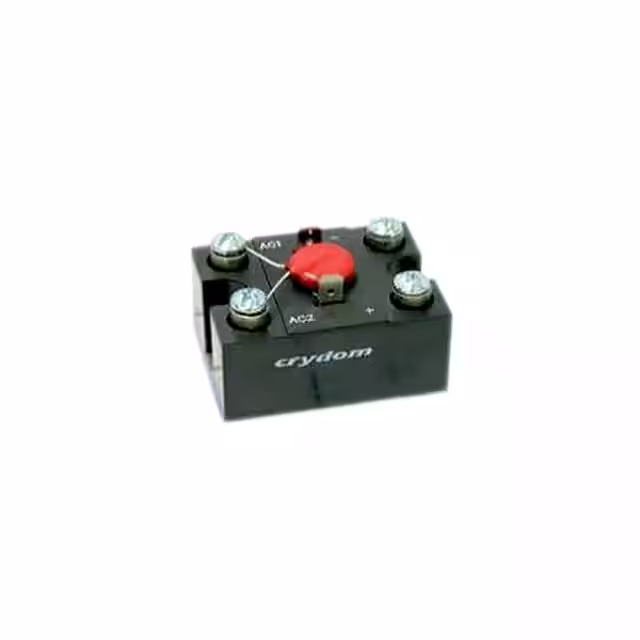

Sensata-Crydom M5010015F
- Part No.:
- M5010015F
- Manufacturer:
- Sensata-Crydom
- Category:
- SCRs - Modules
- Package:
- Module
- Datasheet:
-
M5010015F.pdf
- Description:
- MODULE POWER 100A 1200V SCR CC
- Quantity:
- Payment:

- Shipping:

M5010015F Specifications
- Attributes
- Property Value
- Manufacturer:
- Sensata-Crydom
- Series:
- M50
- Package/Case:
- Module
- Packaging:
- Bulk
- Product Status:
- Active
- Structure:
- Bridge, Single Phase - SCRs/Diodes (Layout 1)
- Number of SCRs, Diodes:
- 2 SCRs, 2 Diodes
- Voltage - Off State:
- 1.2 kV
- Current - On State (It (AV)) (Max):
- -
- Current - On State (It (RMS)) (Max):
- -
- Voltage - Gate Trigger (Vgt) (Max):
- 3 V
- Current - Gate Trigger (Igt) (Max):
- 150 mA
- Current - Non Rep. Surge 50, 60Hz (Itsm):
- 1500A @ 60Hz
- Current - Hold (Ih) (Max):
- -
- Operating Temperature:
- -40°C ~ 125°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Chassis Mount
