IXYS DSEI12-12A
- Part No.:
- DSEI12-12A
- Manufacturer:
- IXYS
- Category:
- Single Diodes
- Package:
- TO-220-2
- Datasheet:
-
DSEI12-12A.pdf
- Description:
- DIODE GEN PURP 1.2KV 11A TO220AC
- Quantity:
- Payment:

- Shipping:

DSEI12-12A Specifications
- Attributes
- Property Value
- Manufacturer:
- IXYS
- Series:
- -
- Package/Case:
- TO-220-2
- Packaging:
- Tube
- Product Status:
- Active
- Technology:
- Standard
- Voltage - DC Reverse (Vr) (Max):
- 1200 V
- Current - Average Rectified (Io):
- 11A
- Voltage - Forward (Vf) (Max) @ If:
- 2.6 V @ 12 A
- Speed:
- Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr):
- 70 ns
- Current - Reverse Leakage @ Vr:
- 250 µA @ 1200 V
- Capacitance @ Vr, F:
- -
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Through Hole
- Supplier Device Package:
- TO-220AC
- Operating Temperature - Junction:
- -40°C ~ 150°C
DSEI12-12A FAQ
1. How to order DSEI12-12A on CEX ELECTRONICS LIMITED?
Currently, CEX ELECTRONICS LIMITED only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.
2. How does CEX ELECTRONICS LIMITED guarantee that DSEI12-12A is from the original manufacturer or authorized agents?
We have a professional and experienced quality control team to strictly verify and test the DSEI12-12A. All suppliers must pass our qualification reviews before they can publish their products including DSEI12-12A on CEX ELECTRONICS LIMITED; we pay more attention to the channels and quality of DSEI12-12A products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.
3. Are the DSEI12-12A price and inventory displayed accurate?
The price and inventory of DSEI12-12A fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.
4. What forms of payment are accepted?
Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.
Warm Tips: Some orders in certain payment forms may require handling fee.
5. How is the shipping arranged?
Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.
Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.
Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.
6. What is the process for return or replacement of DSEI12-12A?
All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the DSEI12-12A we delivered, we will accept the replacement or return of the DSEI12-12A only when all of the below conditions are fulfilled:
(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.
(2)We are informed of the defect described above within 90 days after the delivery of DSEI12-12A.
(3)The PartNo is unused and only in the original unpacked packaging.
Two processes to return the products:
(1)Inform us within 90 days
(2)Obtain Requesting Return Authorizations
7.How to contact us to get technical supports, such as DSEI12-12A pin diagram, DSEI12-12A datasheet?
If you need any after-sales service, please do not hesitate to contact us.
DSEI12-12A Product Comparison
| Image | ![]() |
![]() |
![]() |
||

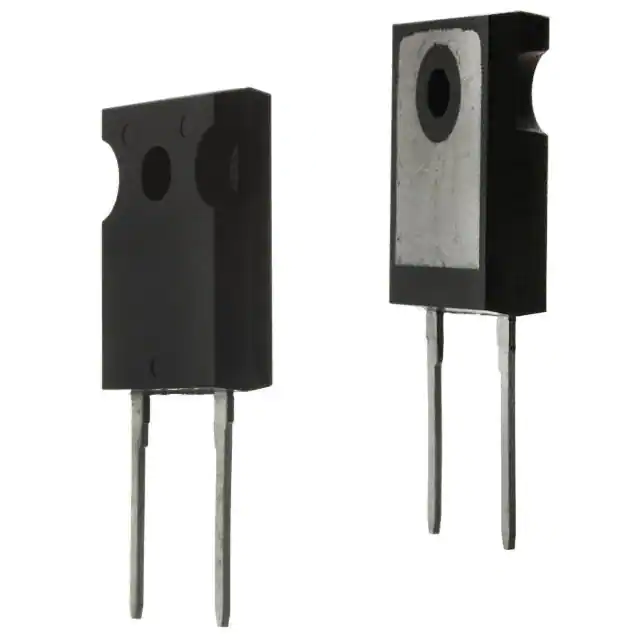

| Part Number | DSEI12-12A | DSEI120-06A | DSEI12-06A | DSEI12-12AZ-TUB | DSEI120-12AZ-TUB |
| Manufacturer | IXYS | IXYS | IXYS | IXYS | IXYS |
| Series | - | FRED | - | - | - |
| Package/Case | TO-220-2 | TO-247-2 | TO-220-2 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA |
| Packaging | Tube | Tube | Tube | Tube | Tube |
| Product Status | Active | Active | Active | Active | Active |
| Technology | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1200 V | 600 V | 600 V | 1200 V | 1200 V |
| Current - Average Rectified (Io) | 11A | 77A | 14A | 11A | 109A |
| Voltage - Forward (Vf) (Max) @ If | 2.6 V @ 12 A | 1.3 V @ 70 A | 1.7 V @ 16 A | 2.6 V @ 12 A | 1.8 V @ 70 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 70 ns | 50 ns | 50 ns | 50 ns | 60 ns |
| Current - Reverse Leakage @ Vr | 250 µA @ 1200 V | 3 mA @ 600 V | 50 µA @ 600 V | 250 µA @ 1200 V | 3 mA @ 1200 V |
| Capacitance @ Vr, F | - | - | - | 6pF @ 600V, 1MHz | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Surface Mount | Surface Mount |
| Supplier Device Package | TO-220AC | TO-247AD | TO-220AC | TO-263HV | TO-268AA |
| Operating Temperature - Junction | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C |

-
