RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE9861B-10WR-187 Waveguide Standard Gain H |
3,852 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 4.9GHz | 3.95GHz ~ 5.85GHz | Horn | 1 | 1.5 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 6.030" (153.16mm) | General Purpose |
|
|
PEWAN1024WR-8 WAVEGUIDE STANDARD GAIN HOR |
2,442 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 115GHz | 90GHz ~ 140GHz | Horn | 1 | 1.15 | - | 25dBi | - | - | - | - | - | - | Waveguide Mount | 2.300" (58.42mm) | General Purpose |
|
|
PE9863B-15-UWR-284 Standard Gain Horn Antenn |
3,656 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 3.275GHz | 2.6GHz ~ 3.95GHz | Horn | 1 | 1.5 | - | 15dBi | - | - | - | - | - | - | Waveguide Mount | 15.340" (389.64mm) | General Purpose |
|
|
PE9862B-10WR-229 Standard Gain Horn Antenn |
1,511 |
|
Datasheet |
- | Retail Package | Active | General ISM | Wide Band | 4.1GHz | 3.3GHz ~ 4.9GHz | Horn | 1 | 1.5 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 6.000" (152.40mm) | General Purpose |
|
|
PEWAN090-20ELSFWR42 GAIN HRN 8.2-12.4GHZ 20DBI |
3,637 |
|
Datasheet |
- | Tape & Box (TB) | Active | Waveguide | Wide Band | 10.3GHz | 8.2GHz ~ 12.4GHz | Horn | 1 | 1.25 | - | 20dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 3.265" (82.93mm) | General Purpose |
|
|
PEWAN042-10ELKFWR42 GAIN HRN 18-26.5GHZ 10DBI |
3,531 |
|
Datasheet |
- | Tape & Box (TB) | Active | Waveguide | Wide Band | 22.2GHz | 18GHz ~ 26.5GHz | Horn | 1 | 1.3 | - | 10dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | 2.92mm Female | - | - | - | Waveguide Mount | 0.882" (22.40mm) | General Purpose |
|
PEWAN137-10WR137 GAIN HORN 5.85-8.2GHZ 10DB |
1,240 |
|
Datasheet |
- | Bulk | Active | Waveguide | C Band (4GHz ~ 8GHz) | 7.03GHz | 5.85GHz ~ 8.2GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
|
PE9853B-20WR-51 Waveguide Standard Gain Ho |
3,471 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 18.5GHz | 15GHz ~ 22GHz | Horn | 1 | 1.5 | - | 20dBi | - | - | - | - | - | - | Waveguide Mount | 4.830" (122.68mm) | General Purpose |
|
PEWAN137-20WR137 GAIN HORN 5.85-8.2GHZ 20DB |
3,027 |
|
Datasheet |
- | Bulk | Active | Waveguide | C Band (4GHz ~ 8GHz) | 7.03GHz | 5.85GHz ~ 8.2GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
PEWAN159-15WR159 GAIN HORN 4.9-7.05GHZ 15DB |
1,955 |
|
Datasheet |
- | Bulk | Active | Waveguide | C Band (4GHz ~ 8GHz) | 5.9GHz | 4.9GHz ~ 7.05GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
PEWAN090-20WR90 GAIN HORN 8.2-12.4GHZ 20DBI |
1,994 |
|
Datasheet |
- | Bulk | Active | Waveguide | X Band (8GHz ~ 12GHz) | 10.3GHz | 8.2GHz ~ 12.4GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|

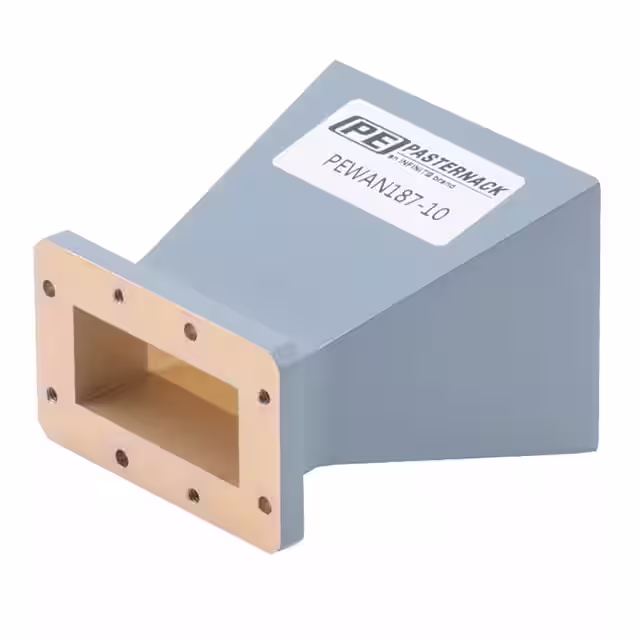

PEWAN187-10WR187 GAIN HORN 3.95-5.85GHZ 10D |
1,069 |
|
Datasheet |
- | Bulk | Active | Waveguide | C Band (4GHz ~ 8GHz) | 4.9GHz | 3.95GHz ~ 5.85GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
PEWAN028-20WR28 GAIN HORN 26.5-40GHZ 20DBI |
1,913 |
|
Datasheet |
- | Bulk | Active | Waveguide | Ka Band (27GHz ~ 40GHz) | 33.3GHz | 26.5GHz ~ 40GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|

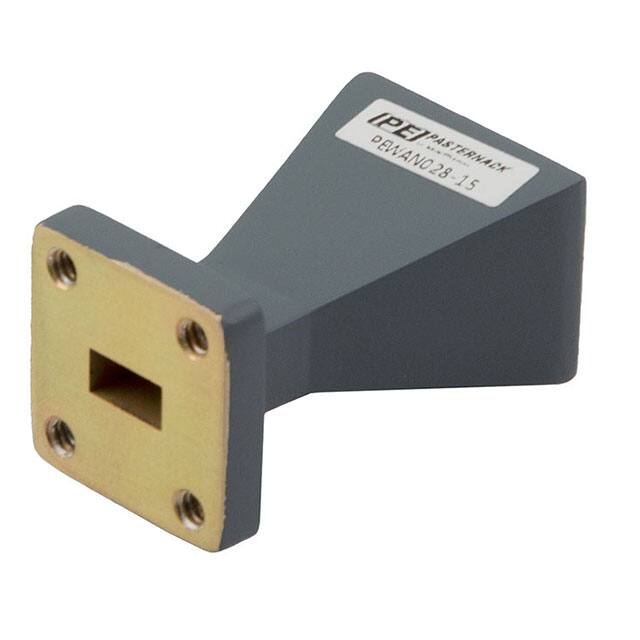

PEWAN028-15WR28 GAIN HORN 26.5-40GHZ 15DBI |
2,941 |
|
Datasheet |
- | Bulk | Active | Waveguide | Ka Band (27GHz ~ 40GHz) | 33.3GHz | 26.5GHz ~ 40GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
|
PE9860B-15WR-159 Waveguide Standard Gain H |
4,404 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 5.975GHz | 4.9GHz ~ 7.05GHz | Horn | 1 | 1.5 | - | 15dBi | - | - | - | - | - | - | Waveguide Mount | 9.468" (240.49mm) | General Purpose |
|
|
PEANED10032 Folded Dipole antenna, 138 MHz |
1,621 |
|
Datasheet |
- | Retail Package | Active | General ISM | VHF (f < 300MHz) | 156MHz | 138MHz ~ 174MHz | Module | 1 | 1.8 | - | 7.6dBi | 100 W | - | N Type Female | - | - | - | - | 114.173" (290.00cm) | General Purpose |
|
|
PEANED10022 Folded Dipole antenna,138 MHz |
2,301 |
|
Datasheet |
- | Retail Package | Active | General ISM | VHF (f < 300MHz) | 156MHz | 138MHz ~ 174MHz | Module | 1 | 1.8 | - | 7dBi | 100 W | - | N Type Female | - | - | - | - | 114.173" (290.00cm) | General Purpose |
|
|
PE9859B-10WR-137 Waveguide Standard Gain H |
2,006 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 7.025GHz | 5.85GHz ~ 8.2GHz | Horn | 1 | 1.5 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 3.530" (89.66mm) | General Purpose |
|
|
PE9851B-10WR-34 Waveguide Standard Gain Ho |
1,892 |
|
Datasheet |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 27.5GHz | 22GHz ~ 33GHz | Horn | 1 | 1.5 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 1.050" (26.67mm) | General Purpose |
|
|
PEWAN102-10ELNFWR102 GAIN HRN 7-11GHZ 10DBI |
1,806 |
|
Datasheet |
- | Tape & Box (TB) | Active | - | Wide Band | 9GHz | 7GHz ~ 11GHz | Horn | 1 | 1.25 | - | 10dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 1.685" (42.80mm) | General Purpose |
