DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0402012L2B-3T0FAN AXIAL 40X20MM 12VDC WIRE |
4,869 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 9.4 CFM (0.263m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 33.0dB(A) | 960 mW | 8000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.045 lb (20.41 g) |
|
|
DC0402012M2B-3T0FAN AXIAL 40X20MM 12VDC WIRE |
3,219 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 11.7 CFM (0.328m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 40.0dB(A) | 1.32 W | 10000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.045 lb (20.41 g) |
|
|
DC0402012H2B-3T0FAN AXIAL 40X20MM 12VDC WIRE |
4,486 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 14.3 CFM (0.400m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.0dB(A) | 2.04 W | 12000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.045 lb (20.41 g) |
|
DC0802512U2B-3T0FAN AXIAL 80X25.4MM 12VDC WIRE |
3,774 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 83.6 CFM (2.34m³/min) | 0.380 in H2O (94.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 50.0dB(A) | 12 W | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.188 lb (85.28 g) |
|
DC0402024H2B-2T0FAN 40X20MM 24VDC |
4,412 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 14.3 CFM (0.400m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.0dB(A) | 4.08 W | 12000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0402024L2B-2T0FAN 40X20MM 24VDC |
1,739 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 9.4 CFM (0.263m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 33.0dB(A) | 1.92 W | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0802524H2B-2T0FAN 80X25MM 24VDC |
2,458 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 74.3 CFM (2.08m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 46.0dB(A) | 11.52 W | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0402024U2B-2T0FAN 40X20MM 24VDC |
2,073 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 16.8 CFM (0.470m³/min) | 1.080 in H2O (269.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 49.0dB(A) | 6 W | 14000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0402024V2B-2T0FAN 40X20MM 24VDC |
1,993 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 19.8 CFM (0.554m³/min) | 1.440 in H2O (358.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 53.0dB(A) | 9.84 W | 16000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
F8025H12B2-FHR-CCFAN AXIAL 80X25MM 12VDC WIRE |
2,746 |
|
Datasheet |
F8025-H | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 40.0 CFM (1.12m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Conformal Coating, Locked Rotor Sensor, Thermal Overload Protector (TOP) | 32.0dB(A) | - | 3200 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.182 lb (82.55 g) |
|
|
F8025L12B2-FSR-CCFAN AXIAL 80X25MM 12VDC WIRE |
2,750 |
|
Datasheet |
F8025 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 29.0 CFM (0.812m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | Auto Restart, Conformal Coating, Locked Rotor Protection | 22.0dB(A) | - | 1800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.174 lb (78.93 g) |
|

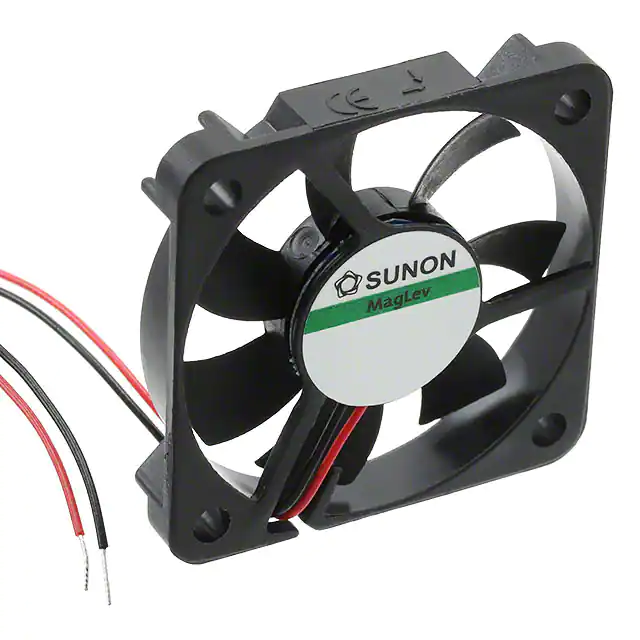

MF40060V1-000U-A99FAN AXIAL 40X6.9MM 5VDC WIRE |
4,513 |
|
Datasheet |
MagLev® MF | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 6.90mm | 5.9 CFM (0.165m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 29.9dB(A) | 440 mW | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.015 lb (6.8 g) |
|
|
PMD1207PKB4-A.(2).GNFAN AXIAL 70X20MM 12VDC WIRE |
1,316 |
|
Datasheet |
PMD | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 20.00mm | - | - | Ball | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | - | - | - | - |
|
|
DC0301012U2B-3T3FAN 30X10MM 12VDC TACH MOLEX 22- |
4,042 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 5.7 CFM (0.157m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 31.0dB(A) | 1.08 W | 11000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0922512U2B-3T3FAN 92X25MM 12VDC TACH MOLEX 22- |
3,263 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 69.2 CFM (1.94m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 3.6 W | 3800 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
SG40281B1-000U-S99FAN AXIAL 40X28MM 12VDC WIRE |
3,188 |
|
Datasheet |
SG | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 25.6 CFM (0.717m³/min) | 1.450 in H2O (361.2 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 58.5dB(A) | 6.24 W | 19000 RPM | 4 Wire Leads | - | - | CUR, TUV, UL | 0.077 lb (34.93 g) |
|
AFB0712M-AFAN AXIAL 70X25.4MM 12VDC WIRE |
1,153 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 70mm L x 70mm H | 25.40mm | 28.9 CFM (0.809m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 31.5dB(A) | 1.32 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.199 lb (90.26 g) |
|

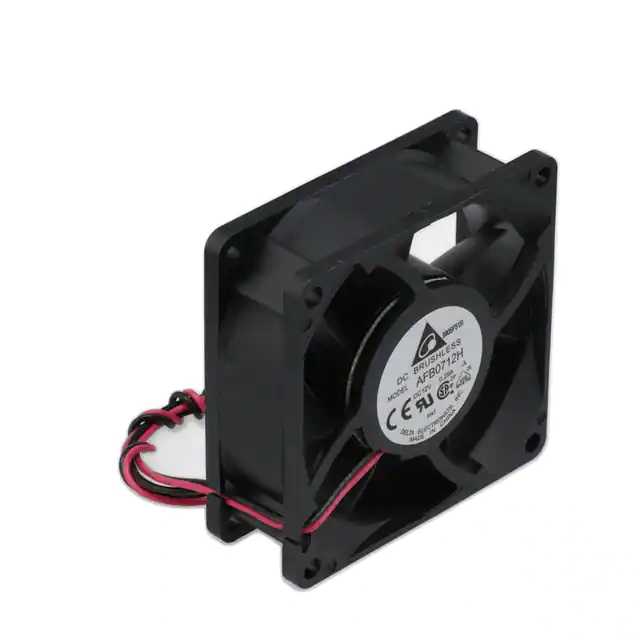

AFB0712H-AFAN AXIAL 70X25.4MM 12VDC WIRE |
3,201 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 70mm L x 70mm H | 25.40mm | 36.3 CFM (1.02m³/min) | 0.217 in H2O (54.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 37.5dB(A) | 2.04 W | 3900 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.199 lb (90.26 g) |
|
3106KL-04W-B40-B00FAN AXIAL 80X15MM 12VDC WIRE |
3,457 |
|
Datasheet |
3106KL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 28.2 CFM (0.790m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | - | 30.0dB | 2.04 W | 2600 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.111 lb (50.35 g) |
|
3610VL-04W-B20-E00FAN AXIAL 92X25MM 12VDC WIRE |
3,548 |
|
Datasheet |
09225VA | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 54.0 CFM (1.51m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | - | 35.5dB(A) | 2.16 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.298 lb (135.17 g) |
