DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEC0381B1-000U-A99FAN AXIAL 120X38MM 12VDC WIRE |
2,716 |
|
Datasheet |
EEC | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 138.0 CFM (3.86m³/min) | 0.360 in H2O (89.7 Pa) | Ball | Tubeaxial | Auto Restart | 48.0dB(A) | 10 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.472 lb (214.1 g) |
|
09225SA-24M-EA-D0FAN AXIAL 92X25MM 24VDC WIRE |
2,003 |
|
Datasheet |
09225SA | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 45.2 CFM (1.27m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart | 29.0dB | 1.68 W | 2750 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
09225SA-12N-EA-D0FAN AXIAL 92X25MM 12VDC WIRE |
240 |
|
Datasheet |
09225SA | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 51.2 CFM (1.43m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Auto Restart | 32.0dB | 1.92 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
09225SA-24N-AA-D0FAN AXIAL 92X25MM 24VDC WIRE |
112 |
|
Datasheet |
09225SA | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 51.2 CFM (1.43m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Auto Restart | 32.0dB | 1.9 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

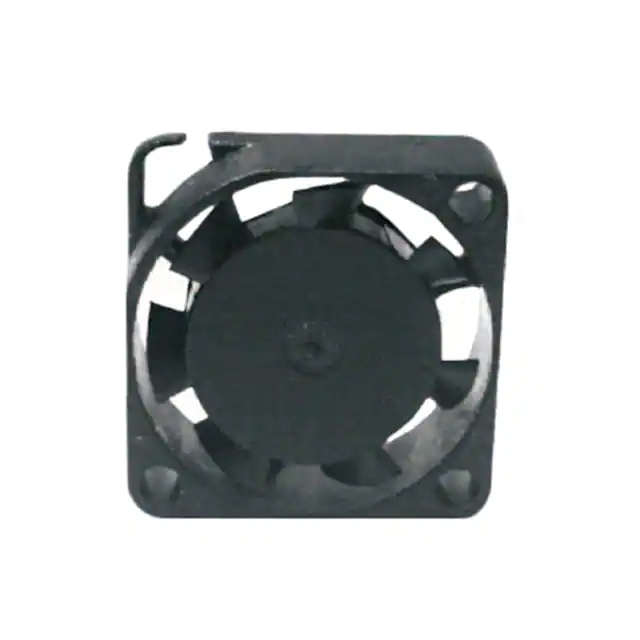

MS2006H12D-RSRFAN AXIAL 20X6.5MM 12VDC WIRE |
443 |
|
Datasheet |
MS2006 | Box | Active | 12VDC | Square - 20mm L x 20mm H | 6.50mm | 1.0 CFM (0.028m³/min) | 0.090 in H2O (22.4 Pa) | Sleeve | Tubeaxial | - | 26.0dB(A) | - | 10000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.007 lb (3.18 g) |
|
DC0501012H2B-2T0FAN AXIAL 50X10MM 12VDC WIRE |
315 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 12.7 CFM (0.356m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 35.0dB(A) | 1.2 W | 6500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
MF50151V1-1B00U-A99FAN BLOWER 51.7X15MM 12VDC WIRE |
3,003 |
|
Datasheet |
MF | Bulk | Active | 12VDC | Square/Rounded - 51.7mm L x 51.6mm H | 15.00mm | 4.5 CFM (0.126m³/min) | 0.670 in H2O (166.9 Pa) | Vapo-Bearing™ | Blower | Auto Restart | 39.6dB(A) | 1.14 W | 5200 RPM | 2 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|

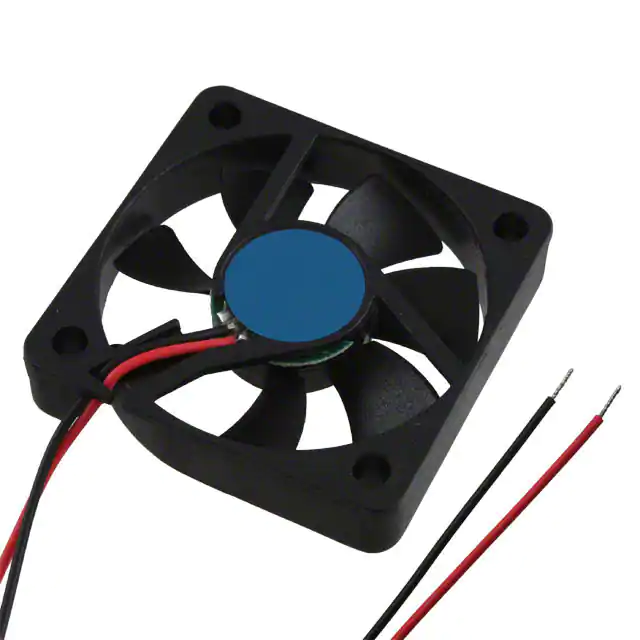

OD5010-12HBFAN AXIAL 50X10.5MM 12VDC WIRE |
2,100 |
|
Datasheet |
OD5010 | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.50mm | 12.7 CFM (0.356m³/min) | 0.018 in H2O (4.4 Pa) | Ball | Tubeaxial | - | 35.1dB(A) | 1.92 W | 6490 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | cURus | - |
|
OD6025-05LBFAN AXIAL 60X25MM BALL 5VDC WIRE |
840 |
|
Datasheet |
OD6025 | Bulk | Active | 5VDC | Square - 60mm L x 60mm H | 25.00mm | 13.0 CFM (0.364m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Auto Restart | 18.0dB | 500 mW | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.141 lb (63.96 g) |
|

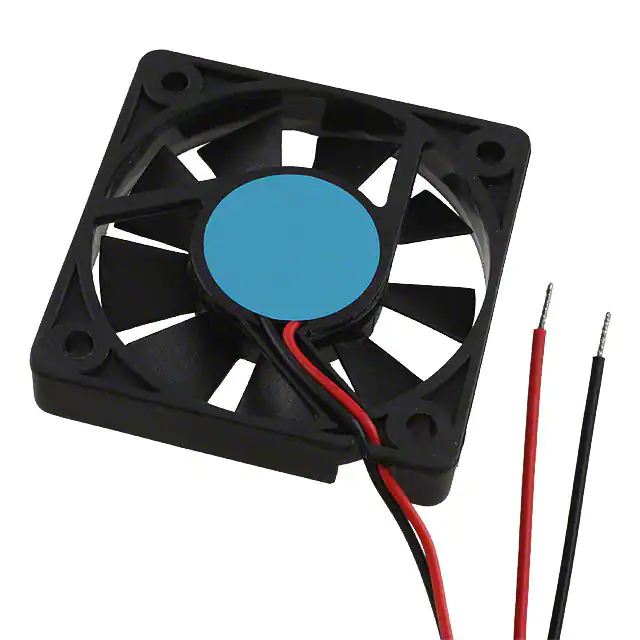

OD5210-12HBFAN AXIAL 52X10MM 12VDC WIRE |
211 |
|
Datasheet |
OD5210 | Bulk | Active | 12VDC | Square - 52mm L x 52mm H | 10.00mm | 12.0 CFM (0.336m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | - | 36.0dB | - | 6000 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|
|
MF35100V1-1000U-G99FAN AXIAL 35X10MM VAPO 5VDC WIRE |
929 |
|
Datasheet |
MagLev® MF | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 7.2 CFM (0.202m³/min) | 0.220 in H2O (55.0 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.0dB(A) | 680 mW | 10000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.024 lb (10.89 g) |
|
|
CFM-2010CF-1170-292-20DC AXIAL FAN, 20 MM SQUARE, 10 M |
194 |
|
Datasheet |
CFM-20CF | Box | Active | 12VDC | Square - 20mm L x 20mm H | 10.30mm | 1.6 CFM (0.045m³/min) | 0.240 in H2O (59.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 29.2dB(A) | 960 mW | 17000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
DC0801512U2B-2T0FAN AXIAL 80X15MM 12VDC WIRE |
643 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 45.2 CFM (1.27m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 43.0dB(A) | 3.6 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
FAD1-06025BBMW12-AFAN AXIAL 60X25MM BALL 5VDC WIRE |
306 |
|
Datasheet |
FAD1-06025-A | Bulk | Active | 5VDC | Square - 60mm L x 60mm H | 25.00mm | 17.9 CFM (0.501m³/min) | 0.152 in H2O (37.9 Pa) | Ball | Tubeaxial | - | 28.1dB(A) | 1.75 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.137 lb (62.14 g) |
|

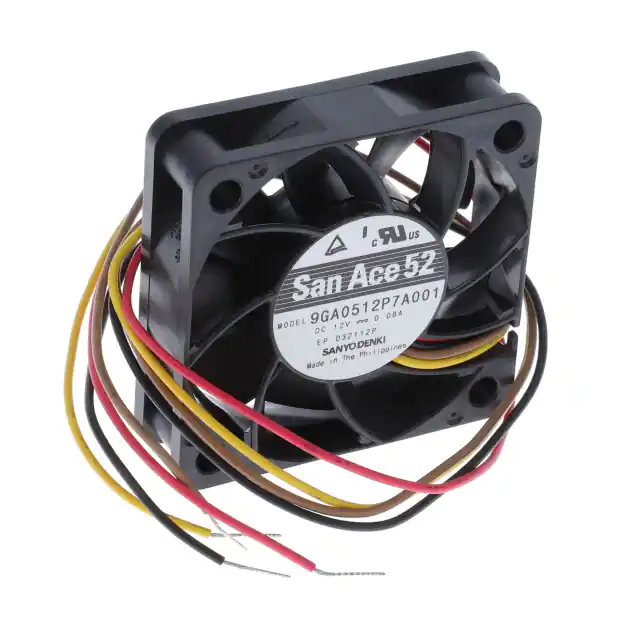

9GA0512P7A001FAN AXIAL 52X15MM 12VDC WIRE |
526 |
|
Datasheet |
San Ace 52 | Box | Active | 12VDC | Square - 52mm L x 52mm H | 15.00mm | 14.1 CFM (0.395m³/min) | 0.237 in H2O (59.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 32.0dB(A) | 960 mW | 6300 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.088 lb (39.92 g) |
|
|
CFM-2010CF-1120-217-22DC AXIAL FAN, 20 MM SQUARE, 10 M |
162 |
|
Datasheet |
CFM-20CF | Box | Active | 12VDC | Square - 20mm L x 20mm H | 10.30mm | 1.1 CFM (0.031m³/min) | 0.120 in H2O (29.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 21.7dB(A) | 960 mW | 12000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
E9225E12B-FSRFAN AXIAL 92X25MM 12VDC WIRE |
227 |
|
Datasheet |
E9225 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 56.0 CFM (1.57m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 39.0dB(A) | - | 3600 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.245 lb (111.13 g) |
|
CFM-4020BF-2110-381FAN AXIAL 40X20MM 24VDC WIRE |
345 |
|
Datasheet |
CFM-40BF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 13.8 CFM (0.386m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | Auto Restart | 38.1dB(A) | 2.88 W | 11000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

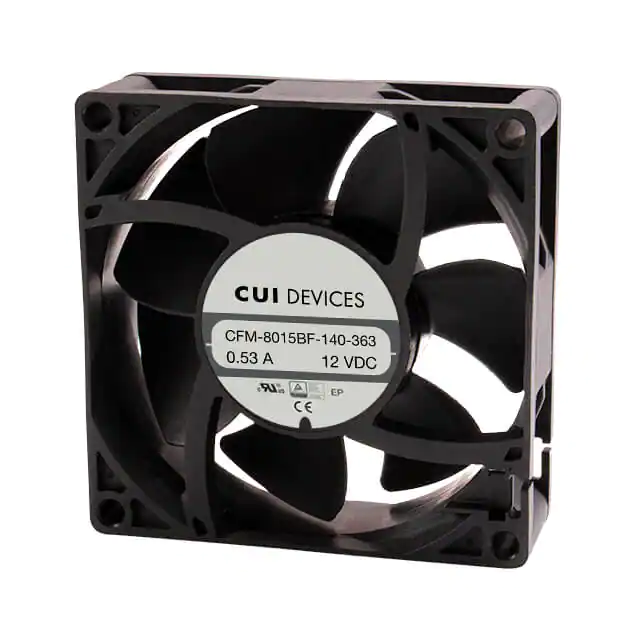

CFM-8015BF-220-213FAN AXIAL 80X15.4MM 24VDC WIRE |
136 |
|
Datasheet |
CFM-80BF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 15.40mm | 23.2 CFM (0.650m³/min) | 0.040 in H2O (10.0 Pa) | Ball | Tubeaxial | Auto Restart | 21.3dB(A) | 1.44 W | 2000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
FAD1-06025CBLW12-AFAN AXIAL 60X25MM 12VDC WIRE |
386 |
|
Datasheet |
FAD1-06025-A | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 12.7 CFM (0.356m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | - | 18.9dB(A) | 1.2 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.137 lb (62.14 g) |
