Boxes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Container Type | Size / Dimension | Height | Area (L x W) | Design | Material | Color | Thickness | Features | Ratings | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PN-1324-CMBBOX PLASTIC 6.73"L X 4.76"W |
648 |
|
Datasheet |
PN | Box | Active | Box | 6.732" L x 4.764" W (170.99mm x 121.01mm) | 2.165" (55.00mm) | 32.1in² (207cm²) | Cover Included | Plastic, Polycarbonate | Gray, Clear Cover/Door | 0.118" (3.00mm) | Card Guides, Mounting Flange, PCB Supports | IP65, NEMA 1,2,4,4X,12,13, UL-508 | UL94 HB |
|
1598EGYBOX PLASTIC GRAY 6.31"L X 6.25"W |
202 |
|
Datasheet |
1598 | Bulk | Active | Box | 6.313" L x 6.246" W (160.35mm x 158.65mm) | 3.354" (85.19mm) | 39.3in² (254cm²) | Split Sides and End Panel(s) | ABS | Gray | - | Card Guides, Flame Retardant, PCB Supports | IP54 | UL94 V-0 |
|
1555RF42GYENCLOSURE PC GRAY 6.3"L X 6.3"W |
115 |
|
Datasheet |
1555F | Bag | Active | Enclosure | 6.300" L x 6.300" W (160.02mm x 160.02mm) | 2.460" (62.48mm) | 39.7in² (256cm²) | Cover Included | Polycarbonate | Gray | - | - | IP66 | UL94 HB |
|
PTS-25315BOX PLASTIC GRAY 5.91"L X 5.91"W |
825 |
|
Datasheet |
PTS | Bulk | Active | Box | 5.906" L x 5.906" W (150.00mm x 150.00mm) | 3.937" (100.00mm) | 34.8in² (225cm²) | Cover Included | Plastic, Fiberglass/Polyester, Polycarbonate | Gray | 0.126" (3.20mm) | Flame Retardant, PCB Supports, Sealing Gasket | IP67, NEMA 4X,6, UL-508 | UL94 V-0 |
|

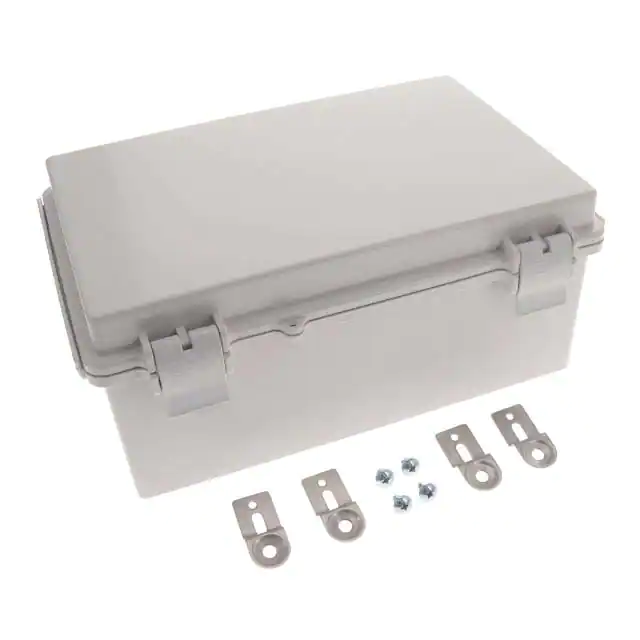

NBF-32016BOX ABS GRAY 11.81"L X 7.87"W |
535 |
|
Datasheet |
NBF | Bulk | Active | Box | 11.810" L x 7.870" W (299.97mm x 199.90mm) | 5.110" (129.79mm) | 92.9in² (599cm²) | Hinged Door, Lid | Plastic, ABS | Gray | 0.145" (3.68mm) | PCB Supports, Non-Metallic Hinges | IP66, NEMA 1,2,4,4X,12,13 | UL94 HB |
|
AN-2864-ABBOX ALUM BLACK 4.92"L X 3.15"W |
220 |
|
Datasheet |
AN-A | Bulk | Active | Box | 4.920" L x 3.150" W (124.97mm x 80.00mm) | 2.244" (57.00mm) | 15.5in² (100cm²) | Cover Included | Metal, Aluminum | Black | 0.090" (2.29mm) | Mounting Flange, PCB Supports, Watertight | IP68, NEMA 4X,6,6P,12,13 | - |
|
CU-3286-MBBOX ABS BLACK 10.151"L X 6.151"W |
193 |
|
Datasheet |
Utilibox Style A | Bulk | Active | Box | 10.151" L x 6.151" W (257.84mm x 156.24mm) | 3.125" (79.38mm) | 62.4in² (403cm²) | Cover Included | Plastic, ABS | Black | 0.105" (2.67mm) | Mounting Flange, PCB Supports | - | UL94 5VA |
|
AN-2854-ABBOX ALUM BLACK 4.53"L X 3.54"W |
103 |
|
Datasheet |
AN-A | Bulk | Active | Box | 4.530" L x 3.540" W (115.06mm x 89.92mm) | 2.170" (55.12mm) | 16.0in² (103cm²) | Cover Included | Metal, Aluminum | Black | 0.130" (3.30mm) | Mounting Flange, PCB Supports, Watertight | IP68, NEMA 4X,6,6P,12,13 | - |
|
1455K1201BOX ALUM NATURAL 4.72"L X 3.07"W |
257 |
|
Datasheet |
1455 | Bulk | Active | Box | 4.724" L x 3.071" W (120.00mm x 78.00mm) | 1.693" (43.00mm) | 14.5in² (94cm²) | End Panel(s) | Aluminum | Natural | 0.060" (1.52mm) | Card Guides | - | - |
|
1455K1201BKBOX ALUM BLACK 4.72"L X 3.07"W |
157 |
|
Datasheet |
1455 | Bulk | Active | Box | 4.724" L x 3.071" W (120.00mm x 78.00mm) | 1.693" (43.00mm) | 14.5in² (94cm²) | End Panel(s) | Aluminum | Black | 0.060" (1.52mm) | Card Guides | - | - |
|
1554J2GYCLBOX PC GRAY/CLR 6.3"L X 3.54"W |
269 |
|
Datasheet |
1554 | Bag | Active | Box | 6.299" L x 3.543" W (159.99mm x 89.99mm) | 2.362" (60.00mm) | 22.3in² (144cm²) | Cover Included | Polycarbonate | Gray, Clear Cover/Door | 0.118" (3.00mm) | Card Guides, PCB Supports, Watertight | IP68, NEMA 4,4X,12,13, UL-508 | UL94 5VA |
|
NBF-32018BOX ABS GRAY 11.81"L X 7.87"W |
734 |
|
Datasheet |
NBF | Bulk | Active | Box | 11.810" L x 7.870" W (299.97mm x 199.90mm) | 6.290" (159.77mm) | 92.9in² (599cm²) | Hinged Door, Lid | Plastic, ABS | Gray | 0.145" (3.68mm) | PCB Supports, Non-Metallic Hinges | IP66, NEMA 1,2,4,4X,12,13 | UL94 HB |
|
1455L801BOX ALUM CLR 3.15"LX4.05"W |
110 |
|
Datasheet |
1455 | Bulk | Active | Box | - | 1.201" (30.51mm) | 12.9in² (83cm²) | End Panel(s) | Aluminum | Clear | 0.059" (1.50mm) | - | - | - |
|
CN-5711BOX ALUM NATURAL 8.75"L X 5.74"W |
350 |
|
Datasheet |
CN | Box | Active | Box | 8.752" L x 5.744" W (222.30mm x 145.90mm) | 2.254" (57.25mm) | 50.3in² (325cm²) | Cover Included | Metal, Aluminum | Natural | 0.080" (2.03mm) | Sealed | IP66, NEMA 1,2,4,4X,12,13 | - |
|
CSKO10104BOX STEEL GRAY 10"L X 10"W |
209 |
|
Datasheet |
CSKO | Bulk | Active | Box | 10.000" L x 10.000" W (254.00mm x 254.00mm) | 4.000" (101.60mm) | 100in² (645cm²) | Cover Included | Metal, Steel | Gray | - | Knockouts | IP20, NEMA 1 | - |
|
PN-1325-CMBBOX PLASTIC 8.74"L X 5.75"W |
116 |
|
Datasheet |
PN | Box | Active | Box | 8.740" L x 5.748" W (222.00mm x 146.00mm) | 2.165" (55.00mm) | 50.2in² (324cm²) | Cover Included | Plastic, Polycarbonate | Gray, Clear Cover/Door | 0.118" (3.00mm) | Card Guides, Mounting Flange, PCB Supports | IP65, NEMA 1,2,4,4X,12,13, UL-508 | UL94 HB |
|
PN-1325-MBBOX PLASTIC GRAY 8.74"L X 5.75"W |
110 |
|
Datasheet |
PN | Box | Active | Box | 8.740" L x 5.748" W (222.00mm x 146.00mm) | 2.165" (55.00mm) | 50.2in² (324cm²) | Cover Included | Plastic, Polycarbonate | Gray | 0.118" (3.00mm) | Card Guides, Mounting Flange, PCB Supports | IP65, NEMA 1,2,4,4X,12,13, UL-508 | UL94 HB |
|
2906BOX ALUM 4.25"L X 2.640"W |
126 |
|
Datasheet |
Size C | Bulk | Active | Box | 4.250" L x 2.640" W (107.95mm x 67.06mm) | 1.710" (43.43mm) | 11.2in² (72cm²) | Cover Included | Metal, Aluminum | Unpainted | - | EMI Shielded, Mounting Flange | - | - |
|
PTS-25338BOX PLASTIC GRAY 9.84"L X 5.91"W |
124 |
|
Datasheet |
PTS | Bulk | Active | Box | 9.843" L x 5.906" W (250.00mm x 150.00mm) | 3.937" (100.00mm) | 58.1in² (375cm²) | Cover Included | Plastic, Fiberglass/Polyester, Polycarbonate | Gray | 0.118" (3.00mm) | Flame Retardant, PCB Supports, Sealing Gasket | IP67, NEMA 4X,6, UL-508 | UL94 V-0 |
|

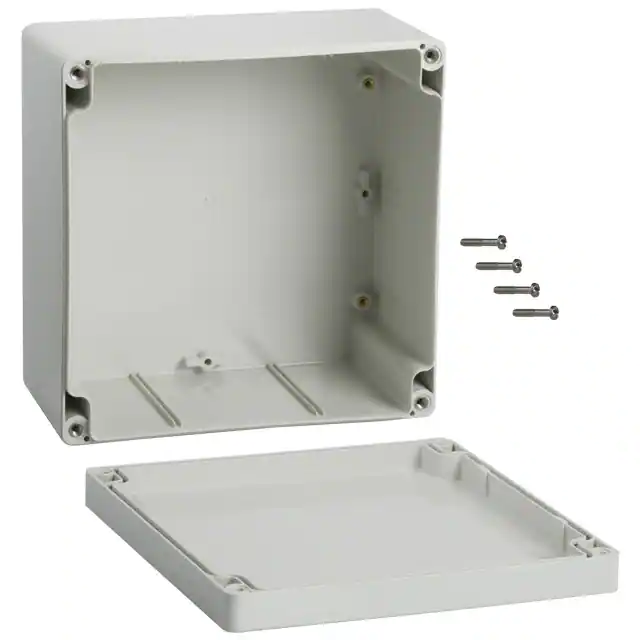

1554SGYBOX PC GRAY 6.3"L X 6.3"W |
2,773 |
|
Datasheet |
1554 | Bulk | Active | Box | 6.299" L x 6.299" W (159.99mm x 159.99mm) | 3.543" (90.00mm) | 39.7in² (256cm²) | Cover Included | Polycarbonate | Gray | 0.128" (3.25mm) | Card Guides, PCB Supports, Watertight | IP66, NEMA 4,4X,12,13 | UL94 HB |
